FCX4G - Flexible 3R Fiber Transponder

The modular FCX4G is a flexible fiber optic converter and repeater with integrated management for broad-band data-transport. FCX4G has one or two independent channels, each supporting data rates for lots of applications including Ethernet, SDH and Fiber-Channel from 10 Mbps up to 4.25 Gbps. Full 3R-Regeneration (re-amplification, re-shaping, re-timing) for each channel in both directions making the FCX4G to an unique member of arcutronix Transmission family.

The option to plug on any port a free and individually selectable fiber optic SFP module makes the FCX4G suitable for use in a wide range of applications.
The integrated management facilitates fine-tuning of FCX4G features, performing loops, as well as monitor-ing the line quality via SNMP or Telnet, based on the SFP's Digital Diagnostic functions.

Access to management functions can be realized via One-slot housing (SHX3) or via system controller (SCX2) in 19” racks (SRX).

• Fully flexible "any-to-any" color/fiber/budget choice for each port on each channel

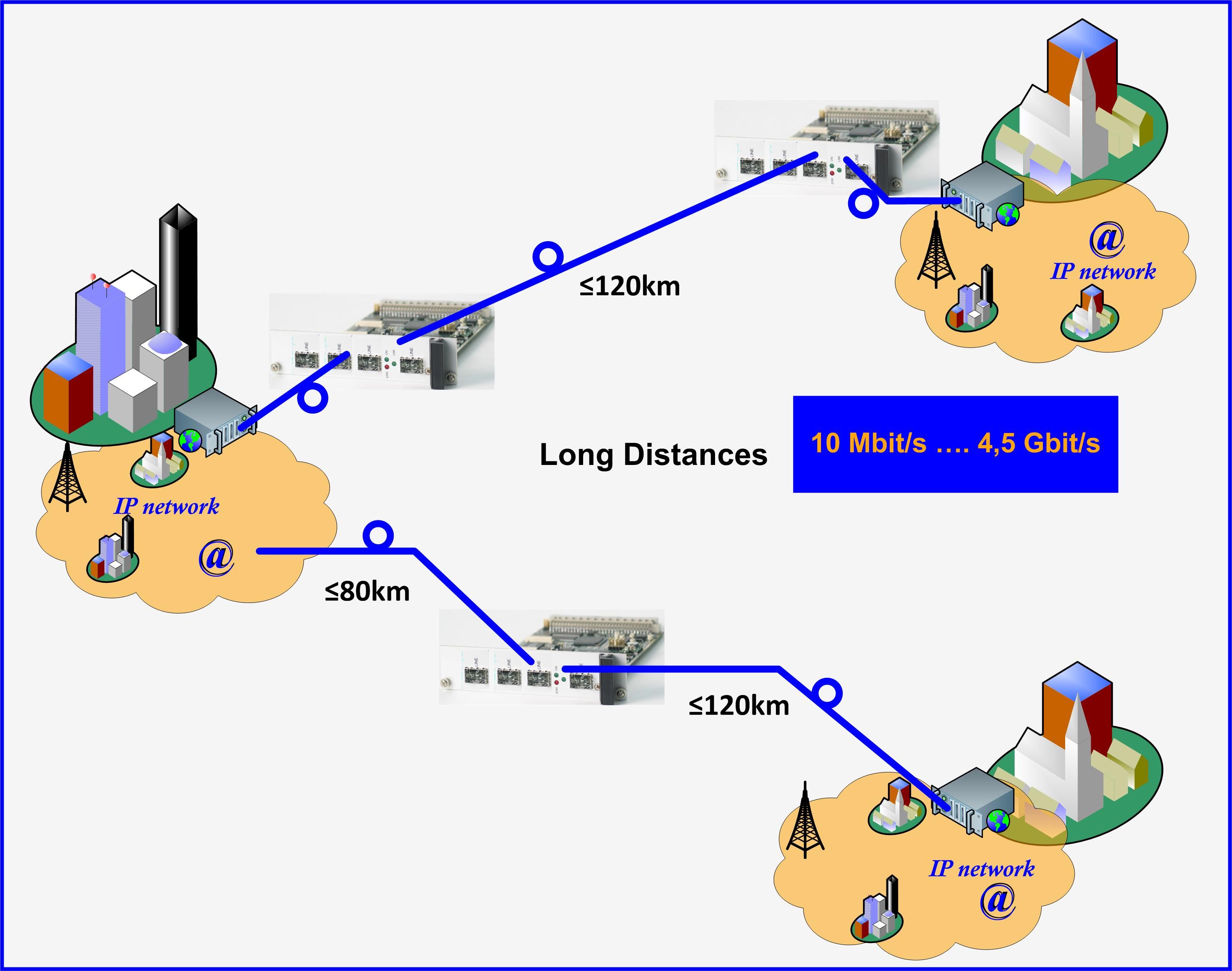

• Fibre optic 3R Repeater for Long distance Transmission (up to 120km)
• Color generator for passive CWDM/DWDM Systems

• Managed 3R Fiber Optic Converter/Repeater with two independent converter channels, each one provided as a SFP slot pair
• Channel data rate 10 Mbps - 4.25 Gbps
• Selection of multi-mode, single-mode, WDM, CWDM or DWDM for each port individually
• Fully protocol transparent

• Special unit version (FCX4G-SEC) offers Broadcasting and Fiber Link Protection capabilities

• Integrated management via VT100-CLI, SNMP and Telnet
• Support of test loops via management
• Digital Diagnostic Monitoring (DDM) of the SFP modules
